Protectite Platinum
Synthetic Roofing Underlayment

Protectite Platinum

PLATINUM Synthetic Roofing Underlayment

  • Specifically manufactured to replace #15 Felt and #30 Felt
  • 17 MIL thickness - a 10 square roll weighs only 37 lbs!
  • Works best for use under Metal, Slate, Asphalt Shingles and Concrete & Clay Tiles
  • 8x lighter, 35x stronger than #15 Felt and #30 Felt
  • 40 year limited warranty
Protectite Platinum Synthetic Roofing Underlayment

Features

Advanced Engineering

Epilay® ProtecTite® Platinum Roofing Underlayment with its advanced engineering is highly recommended for mechanically attached, coated woven synthetic roofing underlayment for sloped roofs. Epilay® ProtecTite® Platinum is a top of the line Premium Heavy Duty Commercial underlayment specifically manufactured to replace the #15 Felt and #30 Felt

Cooler Working Surface

ProtecTite® Platinum's GripWalk® unique gray top layer which provides for a cooler working surface can be used under primary roofing materials to replace #15 Felt and #30 Felt. GripWalk® high traction walking surface permits easier steep slope walk-ability, even during high condensation or moisture on the surface.

High anti skid bottom

ProtecTite® Platinum’s Skid-Resist® high anti-skid bottom surface made with advanced polymers helps keep the underlayment intact and prevents the fabric from tearing while it is being fastened avoiding any leakages through the underlayment layer.

Exceptional Strength

ProtecTite® Platinum is 35 times stronger than #15 Felt and #30 Felt and 2X lighter than #15 Felt and #30 Felt. With a 17 mil thickness a10 square roll weighs only 37 lbs! This super low weight combined with 48" width and 250 ft. run length means big savings in time and labor (over 30% faster to install than felt!). These unique design features when coupled with ProtecTite® Platinum’s exceptional light weight and exceptional tear strength allows the contractor to easily carry the roll up and down the ladder. Fewer laps, cuts and roll handling means you can do more jobs in less time resulting in huge savings for you, the roofing contractor.

Protectite Platinum Synthetic Roofing Underlayment
  • Grip Walk

    Epilay® GripWalk® is our unique high-traction top layer which reduces heat and provides a cooler working surface. GripWalk®‘s textured walking surface permits easier walkability on steep slopes and retains its non-slippery properties even during high condensation and moisture on the surface.

  • Skid Resist

    Epilay® SkidResist® is a very high anti-skid bottom layer made with superior technology and advanced polymers that helps keep the underlayment intact and prevents the fabric from tearing while it is being fastened, avoiding any leakages. Ensuring enhanced stability and safely.

Benefits

Epilay® ProtecTite® Platinum is a 100% synthetic composition providing the following benefits to the roofing contractor:

  • 1 year UV protection.
  • Water repellant , non- absorbent.
  • 17 mil thickness.
  • Works best for use under Metal, Slate, Asphalt Shingles and Concrete & Clay Tiles.
  • Does not wrinkle , crack or become stiff in colder temperatures for smooth and easy installation.
  • ProtecTite® Ultra will not dry out or leach oil in high heat environments as organically saturated felts do.
  • 2 times lighter and 35 times stronger than #15 Felt and #30 Felt.
  • 40 Year limited warranty.
  • Class A Fire ASTM E108 - Meets & exceeds ASTM D 226 Type I & II and ASTM D 4869/ASTM D4869M-05 (2011) Type I-IV and ASTM D 8257.
  • Synthetic construction impervious to mold growth.

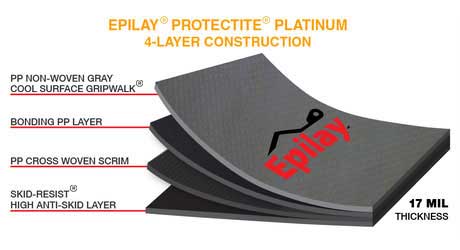

  • Top quality 4 ply Underlayment (3 ply cross woven coated polypropylene with an additional layer of non woven polypropylene).
  • Strong and durable polymer construction.
  • GripWalk® retains non slippery properties even during condensation or moisture on the surface
  • GripWalk® high traction top surface with Light grey color reduces heat and Skid-Resist® high anti-skid bottom with superior technology and advanced polymers, provide better working environment and less tear
  • 100 % recyclable
  • Temperature performance range -40°F to 260°F (-40°C to 126°C)

Technical Data

Test & Standard Typical Value
CLASS a Fire ASTM E108 PASS
Nail Sealability Modified ASTM D1970 PASS
Water Permeability ASTM E96 No Dripping
Water Transmission ASTM D4869 PASS
Tear Strength ASTM D4533 MD 57 lbs/CD 45 lbs
Tensile Strength ASTM D751 MD 115 lbs/CD 128 lbs
Elongation ASTM D751 MD 19%/CD 19%
Weight per Square ASTM D5261 3.71 lbs/1.68 kgs
Specifications Data
Length per roll 250'/76.2m
Width per roll 48"/122cm
Weight per roll 37 lbs/16.7 kgs
Roll size 10sq/93m2
Rolls per pallet 36
Pallet weight Approx. 1400 lbs
