Peel & Stick Roofing Underlayment

Epistik™ I&W

Peel & Stick Roofing Underlayment

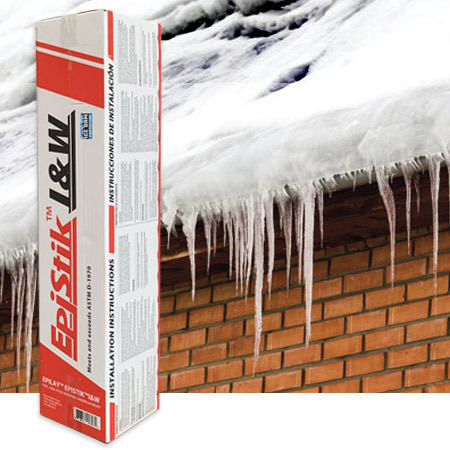

Epistik™ I&W Peel and Stick Roofing Underlayment

Epilay® Epistik™ I&W Peel & Stick Roofing underlayment with its advanced engineering is highly recommended for Self Adhered Peel & Stick, coated woven synthetic roofing underlayment for sloped roofs. It is a Top of the line Premium Heavy Duty Commercial underlayment specifically manufactured to replace the traditional asphalt based Sand and Granular Peel & Stick Underlayments.

These unique design features when coupled with exceptional tear strength and excellent adhesion allows the contractor to easily carry the roll up and down the ladder. The adhesive layer is made from the advanced SBS Modified Bitumen based adhesive which performs extremely well in high as well as low temperatures and gives excellent adhesion to the primary roofing surface whether it is plywood or metal. It has a split release liner with silicone coating on both sides which helps in easier installation.

Epistik™ I&W Plus Peel and Stick Roofing Underlayment
Grip Walk

Epilay® Epistik™ I&W's GripWalk™ is a unique gray top layer which provides for a cooler working surface can be used under primary roofing materials to replace other low end traditional asphalt based Peel & Stick products. GripWalk™ high traction walking surface permits easier steep slope walk-ability, even during high condensation or moisture on the surface.

  • Ice Dam Protection
  • High Temp
  • Secure Seal

Benefits

EPILAY® EPISTIK™ Ice & Water is a Granulated Fiberglass RE-INFORCED SBS Modified Bitumen Underlayment:

  • Water repellent, non- absorbent and UV resistant for up to 90 days.
  • Unique 3" Overlap Edge for excellent adhesion in overlaps
  • 55 mil thickness.
  • Ice Dam Protection
  • Florida Building Code and Miami Dade Approved
  • HIGH-TEMP
  • Class A Fire Rating as per ASTM E 108
  • Excellent rollability
  • Works best for use under Metal, Shake, concrete tiles, slates & asphalt shingles.
  • Does not wrinkle, crack or become stiff in colder temperatures for smooth and easy installation
  • Epilay® EpiStik™ Ice & Water will not dry out or leach oil in high heat environment.
  • Limited Life time limited warranty
  • Temperature performance range -40°F to 250°F (-40°C to 121°C)

Technical Data

Test Properties Test Standard Epistik Plustypical Values
Unrollability ASTM D 1970 No Cracking, tearing or damage
Thickness Mils ASTM D 5147 (Nominal) 50 mils
Tensile Strength ASTM D 1970 MD32/CD27
Adhesion to Plywood lb/ft ASTM D 1970 -
40° F - 3.7
75° F - 16.7
Thermal Stability ASTM D 1970 250° F/Pass
Low Temperature Flexibility ICC AC 48 Pass
Tear Resistance lb/ft ASTM D 1970 MD74/CD30
Permeability ASTM E 96 0.03
Nail Sealability ASTM D 1970 Pass
Specifications Data
Length per roll 65'
Width per roll 36"
Weight per roll 55 lbs
Squares per roll 2
Rolls per pallet 25
Gr. weight per pallet 1425 lbs
